AtomTrace provides you with a comprehensive LIBS solution

Sci-Trace LIBS Elemental Analysis System - All-In-One Elemental Analysis Laboratory

X-Trace LIBS Telemetry Element Analysis System - LIBS in-situ elemental analysis mobile laboratory LIBS technology comprehensive application solution: including MicroLIBS, μCT and LIBS 3D imaging system technology solutions (AtomTrace research team first combined application of μCT and LIBS technology in the world) , see the following application case scheme), biological application program, ecological and environmental science application program, soil science application program, geological minerals (including jewelry identification) application program, material science application program, archaeological and cultural relic identification application program, criminal investigation Application programs, medicines, including Chinese medicine research application programs and other project cooperation: including sample test analysis, sample chemistry two-dimensional or even three-dimensional distribution construction, professional field application cooperation and paper publishing, talent joint training (such as doctorate, etc.) and LIBS technical training AtomTrace, such as laboratory cooperation, provides you with the world's most comprehensive and comprehensive LIBS analysis technology solution!

Sci-Trace LIBS Elemental Analysis System, All-in-one LIBS system

The Sci-Trace LIBS elemental analysis system represents the highest technical realm of LIBS elemental analysis and scanning imaging. The entire system is modular in design and highly scalable and compatible. The system adopts professional optomechanical test bench, and the highly scalable and compatible LIBS sample laser action chamber is installed on the test bench. The sample laser action chamber has various ports to connect XYZ three-dimensional automatic adjustment sample stage, air pressure adjustment system, and purge. System, plasma spectrum signal acquisition system, top and side sample monitoring system, etc., can also be connected with double-excitation laser module, Raman analysis, LIFS analysis and other expansion modules, and with a diameter of 100mm with laser protection filter observation window, real-time observation The reaction of the sample; the instrument box under the countertop is flexible, orderly and compact for various components: the left side partition is adjustable, the laser light source, the spectrometer, the energy meter, the calibration light source, etc. are placed, and the right side frame is provided with electrons. Control components, computers, laser PSU, etc., DDG, PSR, etc.; the instrument box has an open door, the system has a system power switch, indicator light, emergency switch, USB socket and lock. The entire system has casters for easy movement and locking.

Technical features:

ü 20 years of LIBS technology research, the top expert team carefully built the top professional instrument technology, and provided expert support for professional applications; the purchase of Sci-Trace means the world's top professional team technical support and Laboratory cooperation

ü Modular structure, flexible configuration, and powerful system scalability, so that your LIBS elemental analysis laboratory will always maintain the latest technology level, and will not fall out of the way like the system provided by the general commercial company manufacturer. Law use

ü Easy to upgrade to Micro-LIBS for Metalomics, etc.

ü Can be combined with μCT for 3D imaging analysis for medical diagnosis, etc.

ü With strong technical compatibility, you can freely choose the most suitable laser source, spectrum detection system and optical components. It can easily combine other auxiliary technologies (double excitation/three excitation; LIBS+LIFS; Raman, etc.) (AtomTrace laser spectroscopy is required) The laboratory provides technical solutions)

ü High-end full-spectrum Echelle spectrometer and EMCCD spectrum detector, high stability, high precision, high sensitivity, can detect and analyze all band spectra at a time; can also be equipped with Czerny Turner spectrometer and corresponding high-end spectral detector such as iCCD or EMCCD Double detection system to further achieve lower detection limit (detection limit is also largely related to the sample itself, expert program recommendations are extremely important, the following figure shows the structure of the dual pulse, dual detection system: 1, 6 is a double pulse laser 2 is a CCD lens for sample imaging monitoring, 3 is a plasma spectrum acquisition optical system, 4, 5 are Echelle spectrometer and iCCD detector, 7 is a vacuum sample laser chamber, 8 and 9 are Czerny-Turner spectrometers, respectively. iCCD detector)

ü Optional DPSS dual-pulse Nd:YAG laser module, diode-pumped dual-pulse laser - the world's first LIBS system using this technology, air cooling, high stability, long life (more than 1 billion pulses), Can be used for single or dual pulse laser LIBS

ü Show the advantages of LIBS technology:

n Analyzed from solids, liquids (dedicated analysis chambers) and gas-state samples, independent of sample status

n Analyze all element content (detection limit up to 0.1ppm or even lower) and form a two-dimensional map or even three-dimensional element distribution through profile erosion analysis

n Multiple sample racks, samples without pretreatment, can be easily used for environmental monitoring (soil pollution, particle or sediment analysis, atmospheric particulate matter, water suspension, algae, emergency detection, etc.), rock analysis, plastics, etc. Material analysis, soil analysis, plant analysis, trace traceability analysis, forensic and biomedical testing (teeth, bone, hair, etc.), annual ring analysis, archaeological testing, etc.

n Fast scan measurement, online data display analysis

ü Diversified high-end LIBS sample laser chamber (LIBS interaction chamber) with open sample console, cage sample laser chamber and vacuum sample laser chamber for optional, open console can be upgraded to cage or vacuum Cage, can be upgraded to a vacuum sample laser chamber

üVacuum sample laser chamber is a modular height-expandable and highly compatible system. The laser “seal” acts on the sample indoors and has a laser filter observation port to ensure the safety of the analysis process. Three-dimensional sample automatic operation and auto focus can be generated. 2D mapping of different side angles of different angles; integration of optical components such as laser focusing, plasma radiation acquisition, CMOS lens, laser filter, etc.; with various expandable ports to upgrade and expand various accessories and dual-pulse LIBS, LIBS+LIFS, Raman spectroscopy, IR spectroscopy, photoluminescence, etc.

ü Primary Input Module can be used for different angles, different intensity four-quadrant LED illumination (for optimal illumination imaging), online imaging observation (with secondary side imaging observation module), laser focusing and laser spot control ( Optional Laser spot size module)

ü The whole system is easy to maintain, overhaul, upgrade, and expand – even without time and effort to return to the original factory for on-site maintenance, in-place upgrade, and in-place expansion

ü System control software controls all connection modules and sample illumination control, sample online imaging observation, automatic control of the console, vacuum sample laser chamber pressure regulation, sample automatic cleaning, inert gas regulation, laser regulation and detector regulation, plasma spectral acquisition Wait

ü Data processing and analysis software is powerful and user-friendly for spectrum input and output, editing processing, calculation, data visualization, curve calibration and optimization, peak identification, statistical analysis (including ANN, DFD, PCA principal component analysis, cluster analysis, etc. ), elemental two-dimensional map, etc., the database includes NIST database and EU CEITEC laser spectroscopy laboratory LIBS database (DFD function, etc. see software interface diagram below)

X-Trace LIBS Element Telemetry Analysis System

Mobile laboratory for in-situ spectrochemical analysis

X-Trace LIBS element telemetry analysis system is developed by CEITEC/Atomtrace laser spectroscopy laboratory. It is the world's unique LIBS element in-situ telemetry analysis system with telemetry distance of more than 20m. The system consists of a stand-off detection module and a transport module. The host system controls the pulsed laser to reach the surface of the measured object and form a plasma through the telemetry probe. The plasma spectrum is composed of The telemetry probe captures the focus and transmits it to the host system for analysis. The telemetry probe high resolution CCD lens is used to observe, locate and record the surface condition of the sample. The telemetry probe can automatically adjust the rotational movement up and down, left and right, can be placed on the mobile platform of the host system, or can be separately fixed on a strong dedicated tripod; also has a handheld optical optic probe with hand probe for handheld The probe is measured at close range. The mobile platform integrates modules such as spectrometers, detectors, control systems, and optomechanical structures. The whole machine adopts a modular structure, which can be flexibly combined according to different requirements.

It is no longer necessary to stick to material analysis in the laboratory. X-Trace's Laser-Induced Breakdown Spectroscopy (LIBS) technology allows you to move the laboratory to any sample for true in situ measurement and in situ chemistry. analysis!

Technical features:

ü Stand-off LIBS and Remote LIBS patented technology, in-situ non-contact measurement and analysis, telemetry distance up to 20m or more, X-trace is the only ideal for objects that cannot reach the contact or dangerous environment!

ü Handheld fiber optic probe in-situ laser pulse focus erosion measurement, telemetry distance 0-6m (fiber length 7m), spot less than 0.5mm

ü Modular structure, highly flexible configuration, highly scalable system, easy to disassemble and assemble, easy to transport, easy to operate, move, etc.

ü High-end LIBS system, high-end full-spectrum Echelle spectrometer and EMCCD spectrum detector, high stability, high precision, high sensitivity, automatic positioning to focus on the sample to be tested

Main parameter indicators:

1. Strength aluminum frame mobile platform, stainless steel plate, 4x260mm moving wheel and 4 fixed feet, 2 folding handles, control panel including power switch, computer switch, 2xUSB port and SMA, DVI, Ethernet port, etc.

2. The mobile platform has double front and rear doors, front facade for PC, laser PSU and pulse generator, etc., rear facade for spectrometer, etc., easy to maintain, overhaul, upgrade, expand, etc.

3. Echelle graded grating spectrometer with a spectral range of 200-1100nm and a resolution energy of 5000λ/FWHM; optional Czerny-Turner spectrometer

4. EMCCD spectrum detector, spectral range 200-1100nm, QE (photon quantum efficiency) 65% QE@530nm, 24%@200nm, frequency 30Hz

5. Q-Switch pulsed Nd: YAG laser, flash pump laser, laser energy 200mJ@532nm, 8ns pulse, frequency 20Hz

6. Telemetry probe telemetry distance: 6-20m, auto focus, spot less than 1.5mm, pulse energy 200mJ

7. Laser focusing: Galileo telescope, 5x beam amplification, BK7 lens, AR@532nm, anti-reflection anti-reflection coating, motorized focusing 6 meters to infinity

8. Spectral signal acquisition: Newton telescope, 12" primary UV-enhanced aluminized mirror and 2" secondary UV-enhanced aluminized mirror, MgF2 coating, motorized focusing 6m to infinity, multimode high hydroxy silicon 550 (diameter) Mm fiber, 190-1200nm, SMA port, armor

9. Telemetry probe ±90° motorized rotation, 0.1 arc resolution; motorized elevation angle -14° to 33°, resolution 0.1 arc

10. Handheld fiber optic probe measuring distance 0-6m, spot less than 0.5mm, pulse energy up to 25mJ; anti-reflection anti-reflection film laser focusing lens, UVFS collecting optical fiber collimator, with measuring switch button; multimode high hydroxy silicon 550μm fiber (diameter), 190-1200nm; SMA port, multimode high energy 910μm fiber, 400-2200nm, HP SMA port, armor

11. Control software basic functions and controls: sample imaging observation, telemetry module rotation, elevation control and auto focus, in-situ sample distance measurement

12. Control software laser and detector settings: pulse laser energy and repetition frequency settings, detection delay settings, exposure time settings

13. Measurement settings: single point measurement, 2D imaging setting, cleaning pulse quantity setting, number of snapshots and cumulative settings, etc.

14. Sample 3D movement operation, XYZ automatic positioning, setting XYZ coordinate file, defining analysis point, output coordinate file including relative concentration of selected analysis elements

15. Software systems include system control, sample observation and autofocus, spectral acquisition, spectral analysis processing, chemical imaging, (automatic 2D imaging), elemental databases, calibration curve formation, etc.

16. Size 107x78x158cm, 175kg

Application, Case, Applications & Solutions

1. Life science application programs and cases

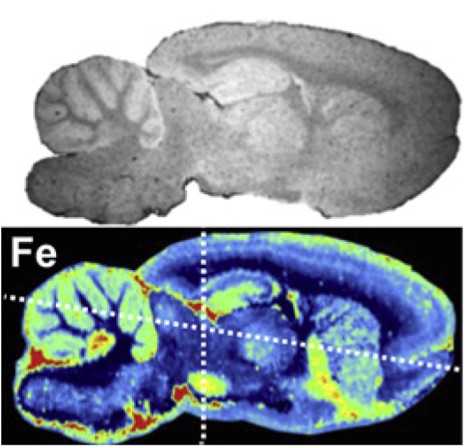

The CEITEC/AtomTrace LIBS research team has long been concerned with the application of LIBS technology in the life sciences including biomedical applications.

In 2005, Dr. Jozef Kaiser (Scientific Director of Atomtrace, Professor of Brno University, Head of Laser Spectroscopy Laboratory, Director of CEITEC Department of Physical Properties and Surface Science) published "Mapping of the metal intake in" in the European Physical Journal. Plants by large-field X-ray microradiography and preliminary feasibility studies in microtomography" (Eur. Phys. J. D 32, 113-118); in 2006, LIBS femtosecond laser spectroscopy was used to analyze plant samples of iron and manganese. The distribution of the elements and the first two-dimensional distribution of the complete leaf iron elements (see the image to the right), and published "Femtosecond laser spectrochemical analysis of plant samples" (Laser Phys.Lett.3, No.1, 21-25, 2006 )

From 2007 to 2010, the research team represented by Dr. Kaiser used μCT and femtosecond laser induced breakdown spectroscopy (LIBS) and LA-LCP-MS techniques to study the absorption and accumulation of heavy metals in sunflower and other plant tissues. Analysis, published papers:

1) Monitoring of the heavy-metal hyperaccumulation in vegetal tissues by X-ray radiography and by Femto-second laser induced breakdown spectroscopy. Microscopy research and technique 70: 147-153, 2007;

2) Utilization of laser induced breakdown spectroscopy for investigation of the metal accumulation in vegetal tissues. SpectrochimicaActa Part B 62:1597-1605;

3) Investigation of heavy-metal accumulation in selected plant samples using laser induced breakdown spectroscopy and laser ablation inductively coupled plasma mass spectrometry. Appl. Phys. A 93:917-922, 2008;

4) Multi-instrumental analysis of tissues of Sunflower plants treated with Silver(I) ions-plants as bioindicators of environmental pollution

5) Mapping of lead, magnesium and copper accumulation in plant tissues by laser-induced breakdown spectroscopy and laser-ablation inductively coupled plasma mass spectrometry. SpectrochimicaActa Part B 64:67-73, 2009;

6) Sunflower plants as bioindicators of environmental pollution with lead(II) ions. Sensors 9:5040-5058, 2009;

7) Detection of lead in Zea mays by dual-energy X-ray Microtomography at the SYRMEP Beamline of the ELETTRA Synchrotron and by Atomic Absorption Spectroscopy. Microscopy Research and Technique 73:638-649, 2010;

8) Determination of plant thiols by liquid Chromatography Coupled with Coulometric and Amperometric Detection in Lettuce by lead (II) ions. Electroanalysis 22 No.11:1248-1259, 2010

The CEITEC/Atomtrace LIBS research team not only used LIBS technology to make complete leaf element distribution maps, but also used LIBS technology to combine with micro-CT (μCT) for 3D chemical imaging construction. The above research results have established the leading position of LIBS technology in the laser spectroscopy laboratory represented by Dr. Kaiser and others in the field of global life and environmental science applications.

The left picture shows the micro-CT of the root section of the sunflower, and the right picture shows the distribution of the lead metal in the sunflower root (from J. Kaiser et al., 2007).

The left picture shows the heavy metal pollution model, and the right picture shows the two-dimensional distribution of lead and magnesium concentrations in the leaves of corn, sunflower and lettuce LIBS.

In 2010, the laser spectroscopy laboratory represented by Kaiser used LIBS technology combined with μCT technology to study and analyze the distribution of spine bone elements including Ca, Al, P, Na, etc. of snake deformity osteitis, and published "Investigation of The osteitisdeformans phases in snake vertebrae by double-pulse laser-induced breakdown spectroscopy" (Anal. Bioanal. Chem. 398:1095-1107, 2010)

The picture above shows the snake spine μCT, the picture below shows the snake's normal vertebrae (a) and pathological vertebrae (b) two-dimensional distribution of calcium and phosphorus.

The laboratory research team also studied the application of LIBS technology in paleontology and archaeology. The following is the results of prehistoric animal teeth research and analysis (see: Multielemental analysis of prehistoric animal teeth by laser-induced breakdown spectroscopy and laser ablation inductively coupled Applied mass spectrometry. Applied Optics 49 No. 13: 191-199, 2010), this study is equally important for the study of annual ring element distribution and environmental change.

Prehistoric animal tooth Sr/Ca and Sr/Ba profiles were performed using LIBS technology and LA-LCP-MS techniques, respectively.

The bone picture shows the annual ring clearly (dark color for winter and white for summer)

In 2012, Dr. Kaiser and others published a review article "Trace elemental analysis by Laser-induced breakdown spectroscopy---biological applications" based on years of research and peer research (Surface Science Report 67:233-243, 2012)

The laboratory also used LIBS technology to conduct a large number of studies on algae (see "Liquid LIBS Elemental Analysis Application Cases and Protocols" later) and published a review article in 2014 "Algal biomass analysis by laser-based analytical techniques---a Review" (Sensor 14, 2014)

2. Geology and mineral application

The CEITEC/Atomtrace Laser Spectroscopy Laboratory has conducted extensive research on the application of LIBS in geology and mineral resources. In 2014, "Two dimensional elemental mapping by laser-induced breakdown spectroscopy" (Spectroscopy Europe 26 No. 6: 6-10, In the 2014 academic paper, the surface element distribution of arsenic platinum ore, chalcopyrite Pt, Pb, Ni, etc. was constructed in 2D and even combined with μCT.

The CEITEC/Atomtrace Laser Spectroscopy Laboratory has conducted extensive research on the application of LIBS in geology and mineral resources. In 2014, "Two dimensional elemental mapping by laser-induced breakdown spectroscopy" (Spectroscopy Europe 26 No. 6: 6-10, In the 2014 academic paper, the surface element distribution of arsenic platinum ore, chalcopyrite Pt, Pb, Ni, etc. was constructed in 2D and even combined with μCT.

The picture on the left is a sample of chalcopyrite. The sample is from Talnakh, Siberia. The picture on the right is μCT and the three-dimensional construction of galena vein deposits using LIBS analysis.

Uranium is the most promising source of energy for humans. The in situ detection of the presence or absence of uranium is extremely important. The main challenge of uranium detection is its complex spectral emission and high-density spectral curves – even beyond the general spectrometer detection capabilities. The CEITEC laser spectroscopy laboratory used LIBS technology to measure and analyze sandstone uranium deposits through ANN (artificial neural network) information processing technology and PCA (principal component analysis).

Left: ANN SOM (Organization Map) specific spectral region response (red dots are high, blue is low); middle: chemical distribution of sandstone samples, Class1 (light yellow) represents high uranium concentration distribution, Class3 ( Dark brown) represents the distribution of silicon oxide, Class 2 is the mixed region of uranium and silicon oxide; right: density distribution of uranium ore

3. Liquid (aqueous suspension) LIBS elemental analysis

As early as 2000, Dr. OtaSamek and Dr. Jozef Kaiser of the Laser Spectroscopy Laboratory of Brno University of Technology published "Application of laser-induced breakdown spectroscopy to in situ analysis of liquid samples" (Opt. Eng. 39(8) 2248- 2262, 2000). In 2012, the CEITEC Laser Spectroscopy Laboratory Research Team, in collaboration with PSI, published "Application of laser-induced breakdown spectroscopy to the analysis of algal biomass for induxrial biotechnology" in SpectrochimicaActa Part B, which uses LIBS technology and special The liquid sample laser chamber analyzes the accumulation of potassium, magnesium, calcium, sodium and other elements essential for algae and the accumulation of toxic heavy metals such as copper. There are two experimental design schemes, one is to measure the algae biofilm by using the vacuum sample laser chamber, and the other is to use the special liquid sample laser chamber to analyze the microalgae target element in the liquid (see the figure below).

Top left: Schematic diagram of biofilm measurement and analysis scheme; left lower panel: Schematic diagram of algal suspension measurement and analysis scheme design;

Right: Biofilm pulsed laser ablation hole

In recent years, CEITEC laser spectroscopy laboratory researchers have conducted a series of studies on liquid elemental analysis, and are at the forefront of the world in the field of elemental analysis of LIBS liquids (including aqueous suspensions), providing a variety of optimal solutions. The following figure shows the scheme for analyzing heavy metal elements (copper) in water:

4. Nanomaterials

Nanotechnology is a hotspot in today's materials technology, where Quantum dots (QDs) and their applications (such as quantum dot markers for life sciences, cancer cell imaging, etc.) are considered to be the most promising nanoparticles. In these applications, QDs must be accurately detected and their spatial distribution measured qualitatively and quantitatively. The current detection method is complex, time-consuming and expensive. The CEINEC/Atomtrace laser spectroscopy laboratory uses LIBS technology to treat different doses and different pH cadmium (Cd). The QDs solution was injected onto the filter paper, and the spatial distribution of QDs was measured and analyzed. It provided an important technical application scheme for the rapid detection of QDs by using LIBS technology.
